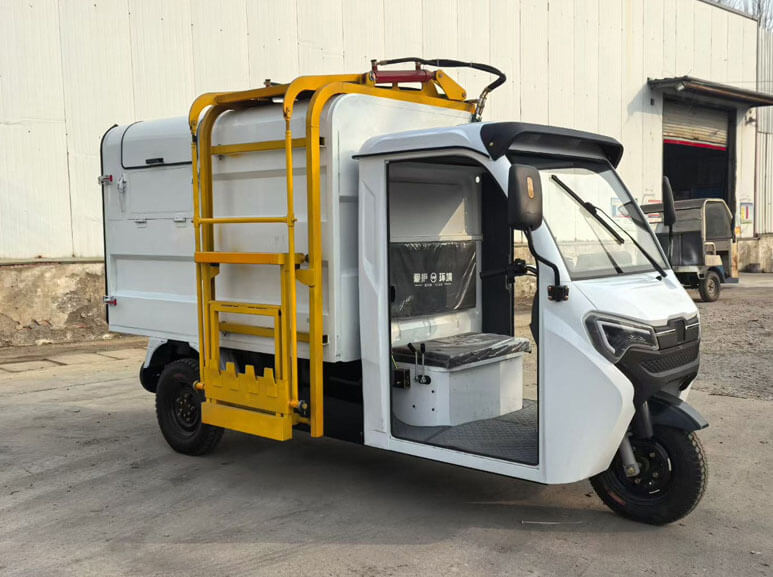

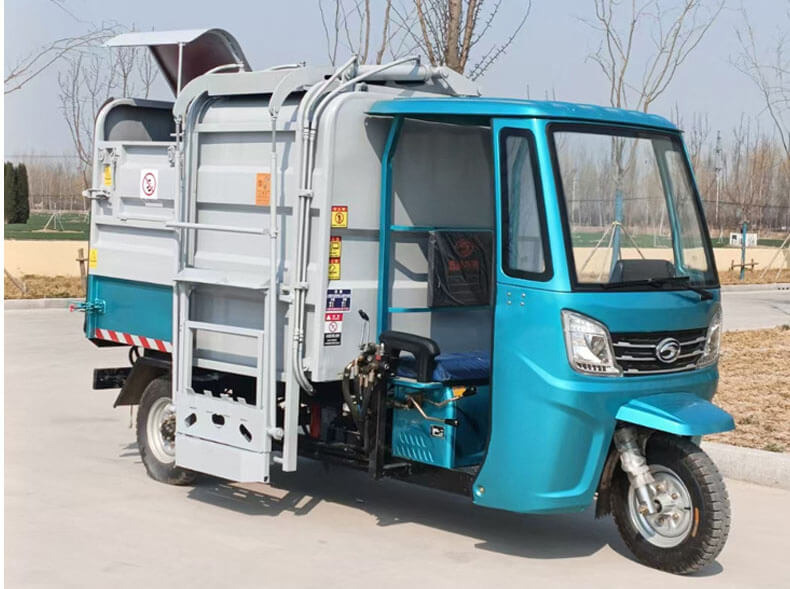

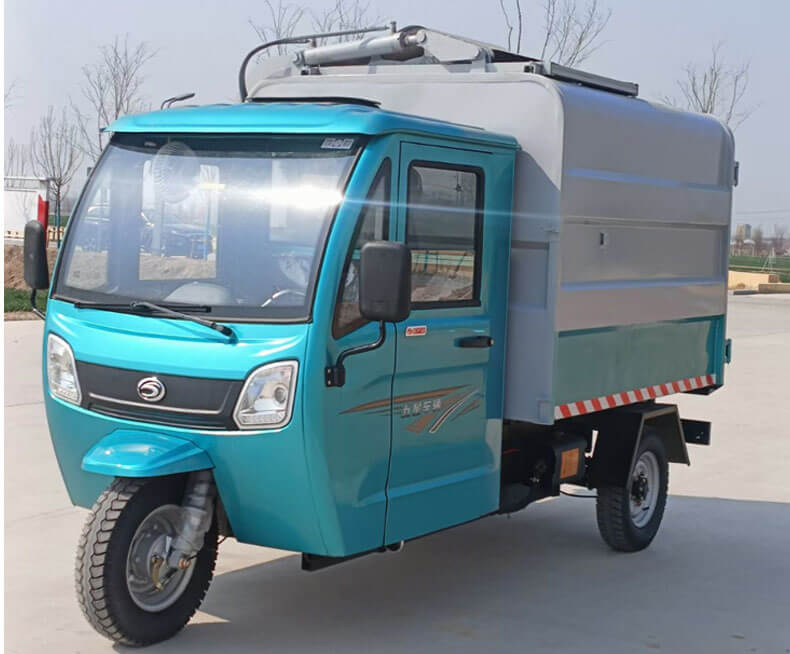

TKW-TJ01 Electric Side-loading Garbage Tricycle

This vehicle acts as a compact, maneuverable waste collection unit. It bridges the gap between manual pushcarts and large commercial diesel dump trucks. It features a semi-enclosed driver cab in the front and an integrated, high-capacity mechanical waste bin in the rear. This design is optimized for navigating narrow alleys, residential communities, campuses, parks, and congested urban streets where standard utility trucks cannot fit.

• Electric Powertrain: It is powered by a high-torque electric motor and heavy-duty battery pack, providing quiet, eco-friendly, zero-emission operation ideal for early morning neighborhoods.

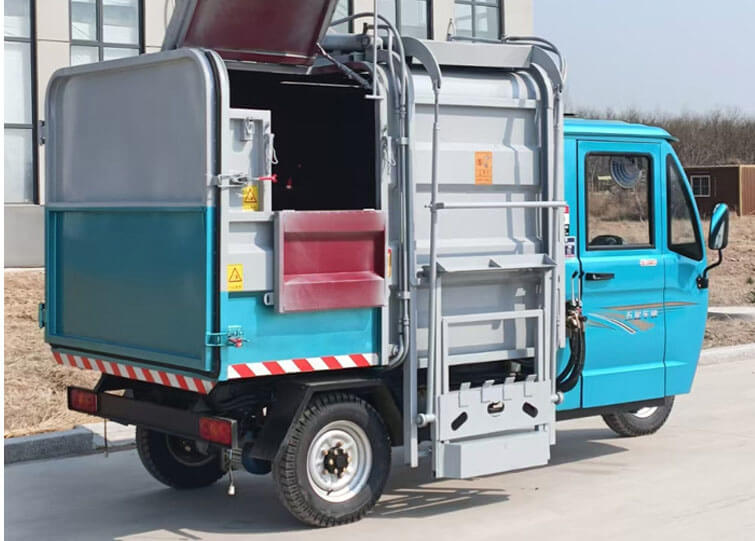

• Side-Loading Hanging Arm Mechanism: The prominent side-mounted metal framework acts as an integrated lift. It can hook standard residential wheelie dustbins, lift them vertically, and flip them to dump waste into the top hatch automatically.

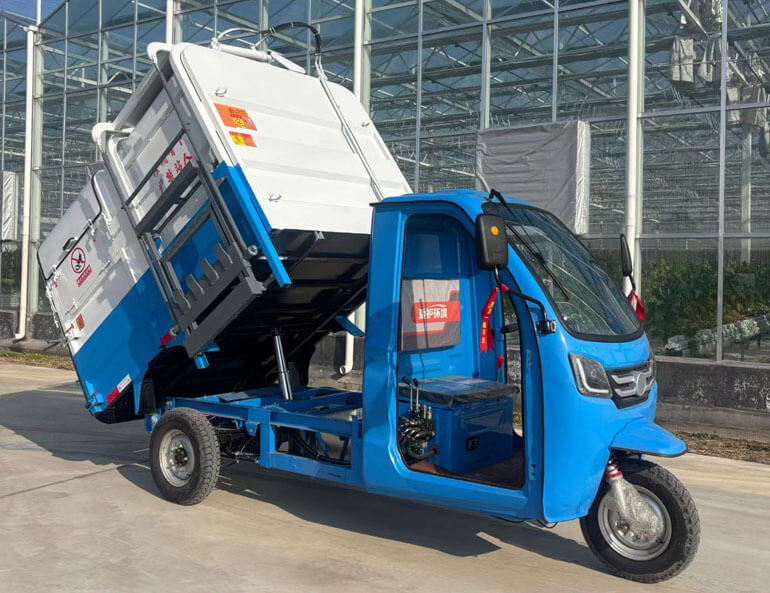

• Hydraulic Self-Unloading (Tipper Bed): The rear waste body contains an internal hydraulic cylinder. This mechanism allows the entire bin to tilt or dump backward to clear out collected trash easily at transfer stations.

• Three-Wheel Maneuverability: The configuration provides an ultra-tight turning radius, allowing sharp turns around obstacles in dense property sites.

• Weather-Protected Cab: Features a front windshield, a roof canopy, and a integrated bench seat to protect the operator from rain, sun, and flying debris.

Cargo box dimensions: 2000 × 1350 × 1200 mm

Cargo box capacity: 3 cubic meters

Motor voltage: 60V/72V 3000W

Battery range: 50–80 km

Hydraulic motor power: 3000W

Lifting motor power: 500W
